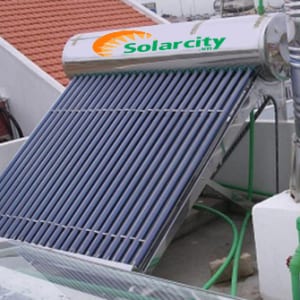

Water heater solar oil pipe 340 l at SolarCity
Water heaters Solar SolarCity là product line pipe dyour cost solar collectors for heating time faster and longer life than product line of vacuum tube solar collectors thhe often.
Advantages of Solarcity oil pipe solar water heater:
+ Fast heat transfer and more efficient than conventional tubes.
+ The temperature of heating water faster
+ Do not cause scale, moss – viscous in the tube
+ Ability to transmit heat continuously, even when the sun is off
|PIPE D EUROPE : Type tube F58 Oil 2m , s ử d emplacements ng permanent durable, 2-layer load-bearing glass. D e are installation maintenance and replacement
The oil pipe is capable of fast heating, good heat retention, no deposits, so it does not need to be flushed during use.
|BAO BINH INSULATION is made of durable SUS 304 stainless steel, automatic rolling welding on Japanese technology line for extremely high durability.|
|INSULATION TIRE : Polyurethane. Structure 50mm thick between 2 layers of stainless steel Outer Shell and Inner Binh Bao Seamless molded by high-pressure machine creates heat retention layer for up to 72 hours|
|WELL-PACKABLE SHELL : Made of stainless steel for shine|
|STAND : Constructed intelligently assembled from 30 x 30 stainless steel box material to create durability and timelessness.|
* Principle of operation of Solarcity Solar Water Heater
Initially, the water was filled in vacuum glass heat pipes in the energy collector, where the water received radiant heat from the sun in a vacuum environment, the water began to heat up.
Hot water has a lower density than cold water, which gradually moves to the upper surface of the vacuum glass tube, then continues moving to the top of the container, in parallel with this process, cold water from the moving container down the pipe, fill up the volume of hot water moving upwards.
During the day, the process of receiving radiant heat is continuous. At night, when not receiving the radiant heat from the sun, then the hot water has been heated during the day will be contained in tanks coated insulated and will be insulated to keep the temperature heated to 72 h, thanks to e ó still have enough hot water needed to use at times of the day without solar radiation heat
PRICE LIST OF SOLARCITY HOT WATER HEATER
D x R x C
VND / Set
Support up to 49%
|80||6 * 58 * 1,800||600x1860x1200||1 – 2 People||7,136,000||6,136,000||3,129,000|
|100||8 * 58 * 1,800||760x1860x1200||2 – 3 People||8,490,000||7,490,000||3,819,000|
|120||10 * 58 * 1,800||900x1860x1200||2 – 3 People||9,820,000||8,820,000||4,499,000|
|140||12 * 58 * 1,800||1100x1860x1200||3 – 4 People||11,195,000||10,195,000||5,199,000|
|150||13 * 58 * 1,800||1200x1860x1200||3 – 4 People||11,960,000||10,960,000||5,589,000|
|160||14 * 58 * 1,800||1260x1860x1200||4 – 5 People||12,530,000||11,530,000||5,879,000|
|180||16 * 58 * 1,800||1420x1860x1200||4 – 5 People||13,880,000||12,880,000||6,569,000|
|200||18 * 58 * 1,800||1600x1860x1200||6 – 7 People||15,160,000||14,160,000||7,219,000|
|240||20 * 58 * 1,800||1760x1860x1200||7 – 8 People||16,410,000||15,410,000||7,859,000|
|260||22 * 58 * 1,800||1930x1860x1200||8 – 9 people||17,765,000||16,765,000||8,549,000|
|280||24 * 58 * 1,800||2100x1860x1200||8 – 9 people||19.1 million||18.1 million||9,229,000|
|300||26 * 58 * 1,800||2260x1860x1200||9 – 10 People||20,450,000||19,450,000||9,919,000|
|320||28 * 58 * 1,800||2420x1860x1200||10 – 11 People||21,820,000||20,820,000||10,619,000|
|340||30 * 58 * 1,800||2600x1860x1200||11 – 12 People||22,960,000||21,960,000||11,199,000|
|360||32 * 58 * 1,800||2750x1860x1200||12 – 13 people||24,290,000||23,290,000||11,879,000|
|380||34 * 58 * 1,800||2920x1860x1200||13 – 14 people||25,650,000||24,650,000||12,569,000|
|400||36 * 58 * 1,800||3100x1860x1200||14 – 15 People||26,390,000||25,390,000||12,949,000|
Notes: Hot water solar oil pipe SolarCity tube 10-year warranty, parts 1 year
Price does not include VAT, pipe supplies arise
